Low Superheat High Subcooling: AC Overcharge Warning Signs 2026
Learn why low superheat with high subcooling indicates an overcharged AC system. Discover diagnostic procedures, safety warnings, and proper recovery methods to prevent compressor damage.
I’ve seen countless homeowners and even junior technicians make the same costly mistake: ignoring low superheat readings because “the system seems to be cooling fine.” After 15 years in HVAC service, I can tell you this condition is like a ticking time bomb for your compressor.
Low superheat combined with high subcooling is a definitive indicator of an overcharged air conditioning system where excess refrigerant causes dangerous operating conditions.
Understanding these readings isn’t just technical knowledge—it’s essential for preventing thousands of dollars in compressor damage and ensuring your system operates efficiently.
In this guide, I’ll walk you through exactly what these readings mean, how to diagnose the problem safely, and what steps to take before permanent damage occurs.
Understanding Superheat and Subcooling Fundamentals
Before diving into diagnostics, you need to understand what these critical measurements actually represent in your central air conditioning systems.
What is Superheat?
Superheat measures how much heat has been added to refrigerant vapor after it has completely boiled into gas. Think of it as the “safety margin” that ensures only gas—not liquid refrigerant—reaches your compressor.
Normal superheat ranges from 8-15°F for fixed orifice systems and 10-20°F for TXV systems. When this reading drops below 5°F, you’re entering dangerous territory where liquid refrigerant can reach the compressor.
What is Subcooling?
Subcooling indicates how much heat has been removed from liquid refrigerant after it condenses, ensuring it remains liquid before reaching the metering device. Normal subcooling ranges from 8-15°F for most systems.
High subcooling (above 15°F) indicates excess refrigerant backing up in the condenser, reducing its ability to reject heat and creating system inefficiency.
The Refrigerant Cycle Connection
These measurements directly relate to the refrigerant’s journey through your system. Low superheat means refrigerant isn’t fully vaporizing in the evaporator, while high subcooling means too much liquid is backing up in the condenser—together they create a clear overcharge signature.
Recognizing Overcharge Symptoms: Reading Patterns and Warning Signs
When I encounter an overcharged system, I see consistent patterns that scream “too much refrigerant.” Learning to recognize these signs early can save you from catastrophic compressor failure.
| Measurement | Normal Range | Overcharge Reading | What It Indicates |
|---|---|---|---|
| Superheat | 8-15°F (fixed), 10-20°F (TXV) | <5°F | Liquid refrigerant reaching compressor |
| Subcooling | 8-15°F | >15°F | Excess refrigerant in condenser |
| Head Pressure | Varies by ambient | High | Reduced condenser capacity |
| Suction Pressure | Varies by load | High | Excess refrigerant in system |
Beyond the gauge readings, I look for physical symptoms like frost on the suction line near the compressor, reduced airflow from vents, and that unmistakable “heavy” feeling in the air—signs the system is struggling despite running constantly.
⚠️ Critical Warning: Never ignore low superheat readings, even if the system appears to be cooling properly. The damage is happening internally long before you notice cooling problems.
Essential Tools and Safety Procedures for HVAC Diagnosis
Before touching any refrigerant lines, you need the right equipment and safety knowledge. I’ve seen too many DIY attempts go wrong because someone skipped proper preparation.
Required Diagnostic Tools
- Quality HVAC gauges with high and low side connections
- Digital temperature clamp for accurate line temperature readings
- PT chart or app for your specific refrigerant type
- Recovery machine if you need to remove refrigerant
- Safety glasses and gloves for personal protection
Safety Precautions You Cannot Skip
- Always verify system power is off before connecting gauges
- Wear proper eye protection—refrigerant can cause blindness instantly
- Never work on pressurized systems without proper training
- Check local regulations for refrigerant handling requirements
- Ensure proper ventilation in your work area
In my experience, the most dangerous mistake is not using proper recovery equipment. Releasing refrigerant to atmosphere isn’t just illegal—it poses environmental risks and hefty fines that can exceed $10,000.
Step-by-Step Diagnostic Process for Low Superheat/High Subcooling
Over the years, I’ve developed a systematic approach that consistently identifies overcharge conditions while avoiding common diagnostic pitfalls.
Quick Summary: This diagnostic process involves verifying system operation, taking accurate measurements, interpreting readings, and confirming overcharge before proceeding with recovery.
Step 1: Verify System Operating Conditions
Before taking readings, ensure your system is running under normal load conditions for at least 15 minutes. I always check that indoor and outdoor temperatures are within normal operating ranges—diagnosing during extreme weather can give misleading readings.

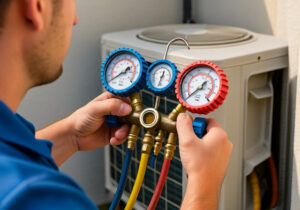

Step 2: Connect Gauges and Take Measurements
Connect your refrigerant gauges to the high and low side service ports. Then measure:
- Suction line temperature at the service valve
- Liquid line temperature leaving the condenser
- Outdoor ambient temperature
- Indoor wet bulb temperature
Step 3: Calculate Superheat and Subcooling
Using your PT chart or app:
- Find the saturation temperature for your measured suction pressure
- Subtract this from your actual suction line temperature = Superheat
- Find the saturation temperature for your measured liquid pressure
- Subtract your actual liquid line temperature from this = Subcooling
Step 4: Interpret the Readings
If you have superheat below 5°F and subcooling above 15°F, you’ve confirmed an overcharge. But before proceeding, I always verify airflow across both coils is unrestricted—dirty filters or coils can mimic these symptoms.
Step 5: Confirm Overcharge Diagnosis
Look for additional confirmation: high head pressure, frost formation, and reduced capacity. When multiple indicators align, I’m confident recommending refrigerant recovery.
Proper Recovery and System Correction Procedures
Recovering excess refrigerant isn’t a job to rush. In my service business, we allow 45-60 minutes for proper recovery on a typical residential system—rushing this step often leads to incomplete recovery and recurring problems.
Recovery Equipment Setup
Connect your recovery machine to both service valves, ensuring all hoses are purged of air. Set your recovery tank on a scale to track exactly how much refrigerant you’re removing—this helps document the overcharge amount.
Gradual Recovery Process
Recover refrigerant in small batches, taking readings between each batch. I typically recover 0.5-1 pound at a time, then let the system run for 10 minutes to stabilize before checking superheat and subcooling again.
System Verification
Once superheat reaches the 8-12°F range and subcooling drops to 8-12°F, your system is properly charged. Document the final readings and the amount of refrigerant removed for future reference.
✅ Pro Tip: Always weigh refrigerant recovery rather than relying on pressure gauges alone. Temperature variations can make pressure readings misleading, but weight never lies.
Special Cases: TXV Issues, Airflow Problems, and System Variations
Not every low superheat situation indicates overcharge. I’ve learned to identify these special cases through years of troubleshooting complex scenarios.
TXV System Differences
Thermostatic Expansion Valve systems maintain superheat automatically, so low readings often indicate TXV failure rather than overcharge. I always check the TXV bulb attachment and verify it’s sensing the correct temperature before recovering refrigerant.
Airflow Complications
Reduced airflow across the evaporator creates low superheat even in properly charged systems. Before removing refrigerant, I always check filters, blower operation, and coil cleanliness. In one memorable case, simply cleaning the evaporator coil fixed low superheat readings without touching the refrigerant charge.
System-Specific Considerations
Modern high-efficiency systems and variable-speed equipment often have different normal ranges. I always consult manufacturer specifications before making adjustments—what’s normal for a 16 SEER system might indicate problems in a 21 SEER unit.
Frequently Asked Questions About Overcharged AC Systems
What would cause low superheat and high subcooling?
Low superheat with high subcooling is primarily caused by refrigerant overcharge, where excess refrigerant floods the evaporator (causing low superheat) and backs up in the condenser (causing high subcooling). Other causes include TXV malfunction, restricted liquid line, or severe airflow problems across the evaporator coil.
What happens if superheat is too low?
When superheat is too low, liquid refrigerant reaches the compressor instead of gas, causing flood back or slugging. This dilutes compressor oil, reduces lubrication, and can cause catastrophic mechanical failure. The damage often occurs internally before you notice cooling problems, leading to expensive compressor replacements.
Does low superheat mean overcharged?
Low superheat combined with high subcooling definitively indicates overcharge. However, low superheat alone could also indicate TXV malfunction, severe airflow restrictions, or low load conditions. Always verify multiple system parameters before recovering refrigerant to avoid misdiagnosis.
How to tell if HVAC is overcharged?
Look for low superheat (below 5°F) with high subcooling (above 15°F), high head pressure, frost on the suction line near the compressor, and reduced system capacity. Professional diagnosis with proper gauges and temperature measurements is essential for accurate assessment.
How to fix overcharged refrigeration system?
Use a certified recovery machine to slowly remove excess refrigerant while monitoring superheat and subcooling. Recover in small batches, allowing system stabilization between removals. Never vent refrigerant to atmosphere—this violates EPA regulations and environmental laws.
What are two common symptoms of overcharged air conditioning system?
The two most common symptoms are low superheat readings (indicating liquid refrigerant reaching the compressor) and high subcooling readings (indicating excess refrigerant backing up in the condenser). You may also notice frost on the suction line and reduced cooling capacity.
Quick Reference and Safety Reminders
After hundreds of overcharge diagnoses, I’ve learned that having quick reference information readily available prevents mistakes and ensures consistent results.
Key Takeaway: Low superheat with high subcooling always requires immediate attention—this combination creates the perfect storm for compressor damage through flood back and oil contamination.
Normal Reading Ranges (Quick Reference)
| Measurement | Fixed Orifice Systems | TXV Systems |
|---|---|---|
| Superheat | 8-15°F | 10-20°F |
| Subcooling | 8-15°F | 8-15°F |
When to Call a Professional
Don’t attempt recovery if you lack proper certification or equipment. Call a professional when you’re unsure about diagnosis, working with unfamiliar systems, or when the problem persists after your initial recovery attempts.
Remember that the cost of professional service is always less than replacing a damaged compressor. In my experience, proper diagnosis and recovery costs $150-300, while compressor replacements typically exceed $2,500.
Understanding these critical measurements and responding appropriately to low superheat/high subcooling conditions will protect your investment and ensure reliable cooling for years to come.
