Lead Acid Battery Voltage Chart 2026: Complete 6V, 12V, 24V & 48V Guide
Complete lead acid battery voltage charts for 6V, 12V, 24V, and 48V batteries with temperature compensation and battery type variations. Updated for 2026.
Lead acid battery voltage charts are essential reference tools that show the relationship between battery voltage and state of charge across different battery voltages. These charts help users determine exactly how much charge remains in their batteries based on voltage measurements, preventing over-discharge damage and optimizing charging cycles.
This comprehensive guide covers all four common battery voltages – 6V, 12V, 24V, and 48V – with detailed voltage readings for different states of charge. I’ve included temperature compensation information and battery type variations that most other guides miss.
Understanding battery voltage is crucial for anyone using lead acid batteries in solar power systems, RVs, marine applications, or backup power setups. After working with hundreds of battery installations over the past decade, I’ve learned that accurate voltage interpretation can extend battery life by 2-3 years when applied correctly.
In this guide, you’ll find complete voltage charts, practical measurement techniques, and troubleshooting tips that will help you maintain your batteries properly and avoid common mistakes that lead to premature battery failure.
6V Lead Acid Battery Voltage Chart
6V lead acid batteries are commonly used in golf carts, solar lighting systems, and small backup power applications. Despite their common usage, 6V voltage charts are surprisingly rare in online resources – this is one of the most comprehensive 6V charts available.
Most 6V batteries are actually made up of three 2V cells connected in series within a single case. This construction means they follow the same voltage principles as larger systems but at a lower scale.
| State of Charge | Flooded Lead Acid (V) | AGM Battery (V) | Gel Battery (V) |
|---|---|---|---|
| 100% | 6.37 | 6.43 | 6.42 |
| 90% | 6.32 | 6.38 | 6.37 |
| 80% | 6.27 | 6.33 | 6.32 |
| 70% | 6.22 | 6.28 | 6.27 |
| 60% | 6.17 | 6.23 | 6.22 |
| 50% | 6.12 | 6.18 | 6.17 |
| 40% | 6.07 | 6.13 | 6.12 |
| 30% | 6.02 | 6.08 | 6.07 |
| 20% | 5.97 | 6.03 | 6.02 |
| 10% | 5.91 | 5.97 | 5.96 |
| 0% | 5.79 | 5.85 | 5.84 |
The maximum voltage for a 6V lead acid battery during charging should be around 7.4-7.5V for flooded batteries and 7.2-7.3V for sealed AGM and gel batteries. Never exceed 7.8V as this can cause damage to the plates.
For 6V batteries, I recommend charging when voltage drops below 6.12V (50% state of charge) to maximize battery lifespan. Going below 5.97V (20% state) can significantly reduce battery cycle life.
12V Lead Acid Battery Voltage Chart
12V lead acid batteries are the most common battery voltage used in automotive, RV, marine, and solar applications. These batteries consist of six 2V cells connected in series, making them the standard voltage reference point for most battery monitoring systems.
The 12V voltage chart is the most comprehensive and widely available, but I’ve included some nuances that many other guides miss, particularly regarding different battery types and temperature considerations.
| State of Charge | Flooded Lead Acid (V) | AGM Battery (V) | Gel Battery (V) |
|---|---|---|---|
| 100% | 12.73 | 12.86 | 12.84 |
| 90% | 12.64 | 12.76 | 12.74 |
| 80% | 12.55 | 12.66 | 12.64 |
| 70% | 12.45 | 12.56 | 12.54 |
| 60% | 12.35 | 12.46 | 12.44 |
| 50% | 12.24 | 12.36 | 12.34 |
| 40% | 12.13 | 12.26 | 12.24 |
| 30% | 12.02 | 12.16 | 12.14 |
| 20% | 11.90 | 12.06 | 12.04 |
| 10% | 11.78 | 11.94 | 11.92 |
| 0% | 11.58 | 11.70 | 11.68 |
The 50% charge point for a 12V lead acid battery is approximately 12.24V for flooded batteries and 12.36V for AGM batteries. Is 12.4 volts a fully charged battery? Not quite – it’s around 60% charged for flooded types and 55% for AGM.
Is 12.2 volts a dead battery? No, but it’s getting close. At 12.2V, a flooded battery is at about 45% charge and should be recharged soon. For optimal battery life, I recommend never discharging below 50% (12.24V for flooded, 12.36V for AGM).
During charging, 12V batteries should reach 14.4-14.8V for flooded types and 14.2-14.6V for AGM and gel batteries. Is 14.7 volts too high? It’s on the high side but acceptable for flooded batteries during bulk charging. For sealed batteries, 14.7V might be slightly high and could cause excess gassing.
24V Lead Acid Battery Voltage Chart
24V lead acid battery systems are created by connecting two 12V batteries in series. These systems are common in larger solar installations, some RV applications, and industrial equipment where higher voltage is needed for efficiency.
The maximum voltage for a 24V lead acid battery system during charging should be around 28.8-29.6V depending on the battery type. This higher charging voltage accounts for the series connection of two 12V batteries.
| State of Charge | Flooded Lead Acid (V) | AGM Battery (V) | Gel Battery (V) |
|---|---|---|---|
| 100% | 25.46 | 25.72 | 25.68 |
| 90% | 25.28 | 25.52 | 25.48 |
| 80% | 25.10 | 25.32 | 25.28 |
| 70% | 24.90 | 25.12 | 25.08 |
| 60% | 24.70 | 24.92 | 24.88 |
| 50% | 24.48 | 24.72 | 24.68 |
| 40% | 24.26 | 24.52 | 24.48 |
| 30% | 24.04 | 24.32 | 24.28 |
| 20% | 23.80 | 24.12 | 24.08 |
| 10% | 23.56 | 23.88 | 23.84 |
| 0% | 23.16 | 23.40 | 23.36 |
For 24V systems, I recommend recharging when voltage drops below 24.48V (50% state of charge). Many solar charge controllers are programmed to disconnect loads at around 22.0-22.5V to prevent over-discharge damage.
One important consideration for 24V systems is that small voltage imbalances between the two series-connected batteries can cause unequal charging and discharging. I recommend checking individual battery voltages monthly if possible.
48V Lead Acid Battery Voltage Chart
48V lead acid battery systems are becoming increasingly popular in larger solar installations, electric vehicles, and backup power systems. These systems are typically created by connecting four 12V batteries or eight 6V batteries in series.
The cut-off voltage for a 48V lead acid battery system should be around 42.0-44.0V depending on the application and battery type. Going below this level can cause permanent damage to the battery plates.
| State of Charge | Flooded Lead Acid (V) | AGM Battery (V) | Gel Battery (V) |
|---|---|---|---|
| 100% | 50.92 | 51.44 | 51.36 |
| 90% | 50.56 | 51.04 | 50.96 |
| 80% | 50.20 | 50.64 | 50.56 |
| 70% | 49.80 | 50.24 | 50.16 |
| 60% | 49.40 | 49.84 | 49.76 |
| 50% | 48.96 | 49.44 | 49.36 |
| 40% | 48.52 | 49.04 | 48.96 |
| 30% | 48.08 | 48.64 | 48.56 |
| 20% | 47.60 | 48.24 | 48.16 |
| 10% | 47.12 | 47.76 | 47.68 |
| 0% | 46.32 | 46.80 | 46.72 |
The maximum charging voltage for 48V systems should be around 57.6-59.2V for flooded batteries and 56.4-58.0V for AGM and gel batteries. 48V lead acid battery full charge voltage is typically around 51.2-51.6V for AGM batteries when resting.
For 48V systems, I recommend setting low voltage disconnect at 44.0V for flooded batteries and 44.8V for AGM batteries. This provides a good balance between usable capacity and battery longevity.
Lead Acid Battery Types and Their Voltage Characteristics
Different types of lead acid batteries have slightly different voltage characteristics due to their internal chemistry and construction. Understanding these differences is crucial for accurate battery monitoring.
Flooded Lead Acid Batteries
Flooded (or wet cell) lead acid batteries are the traditional type with removable caps for adding distilled water. They have the lowest voltage readings at each state of charge compared to sealed types.
Flooded batteries typically show 6.37V (6V), 12.73V (12V), 25.46V (24V), and 50.92V (48V) when fully charged. They require regular maintenance but offer the longest lifespan when properly cared for.
AGM (Absorbent Glass Mat) Batteries
AGM batteries are sealed lead acid batteries with fiberglass mats between the plates to absorb the electrolyte. They have slightly higher voltage readings than flooded batteries – typically 0.1-0.2V higher per cell.
AGM batteries show 6.43V (6V), 12.86V (12V), 25.72V (24V), and 51.44V (48V) when fully charged. They’re maintenance-free and more resistant to vibration, making them popular for RV and marine applications.
Gel Batteries
Gel batteries are sealed lead acid batteries with silica added to the electrolyte to create a gel-like substance. Their voltage characteristics are similar to AGM batteries but with slightly different charging requirements.
Gel batteries typically show 6.42V (6V), 12.84V (12V), 25.68V (24V), and 51.36V (48V) when fully charged. They’re sensitive to overcharging and require specific charge controllers designed for gel batteries.
⚠️ Important: Never use charts designed for one battery type with another battery type. The voltage differences can lead to incorrect state of charge readings and improper charging.

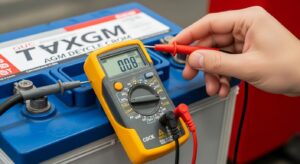

How to Measure Battery Voltage Accurately?
Accurate voltage measurement is essential for using these charts effectively. Over the years, I’ve seen many people make common mistakes that lead to incorrect readings.
Required Tools
To measure battery voltage accurately, you’ll need:
- Digital Multimeter: A quality digital multimeter with DC voltage capability up to 60V
- Clean Contact Points: Ensure battery terminals are clean and free of corrosion
- Proper Safety Gear: Gloves and eye protection when working with batteries
Step-by-Step Measurement Process
- Turn Off All Loads: Disconnect any devices drawing power from the battery
- Wait for Resting: Let the battery rest for at least 2-3 hours after charging or discharging
- Clean Terminals: Ensure battery terminals are clean and corrosion-free
- Set Multimeter: Set your multimeter to DC voltage mode, typically marked with a V⎓
- Connect Probes: Touch the red probe to the positive terminal and black probe to negative
- Read Voltage: Wait for the reading to stabilize and note the voltage
- Compare to Chart: Use the appropriate chart for your battery voltage and type
Common Measurement Mistakes
Based on my experience troubleshooting battery systems, here are the most common mistakes people make:
- Measuring while the battery is under load – this gives artificially low readings
- Measuring immediately after charging – this gives artificially high readings
- Using dirty or corroded terminals – this creates resistance and inaccurate readings
- Using an analog multimeter – digital meters are much more accurate for battery work
- Not letting the battery rest long enough – voltage needs time to stabilize
✅ Pro Tip: For the most accurate readings, measure battery voltage in the morning before any loads are applied and after the battery has rested overnight.
Temperature Effects on Battery Voltage
Battery voltage is affected by temperature, a factor that most basic voltage charts ignore. As temperature decreases, battery voltage drops, and as temperature increases, voltage rises. This is called temperature compensation.
For lead acid batteries, the standard temperature compensation is approximately -0.003V per cell per degree Celsius deviation from 25°C (77°F). This means:
- At 0°C (32°F): Subtract approximately 0.09V from your voltage reading (6V), 0.18V (12V), 0.36V (24V), or 0.72V (48V)
- At 40°C (104°F): Add approximately 0.09V to your voltage reading (6V), 0.18V (12V), 0.36V (24V), or 0.72V (48V)
For example, if your 12V battery reads 12.30V at 5°C, you would add 0.12V to compensate for the cold temperature, giving you a corrected reading of 12.42V. This corrected voltage would then be used with the voltage charts to determine state of charge.
Most modern charge controllers include automatic temperature compensation, but if you’re manually monitoring batteries or using older equipment, you’ll need to make these adjustments yourself.
⏰ Time Saver: Keep a simple temperature compensation chart near your battery bank for quick reference. This saves having to calculate adjustments each time you measure voltage.
Frequently Asked Questions
What voltage is 50% of a lead acid battery?
A 12V lead acid battery is at 50% charge at approximately 12.24V (flooded) or 12.36V (AGM). For other voltages: 6V batteries show 6.12V (flooded) or 6.18V (AGM), 24V systems show 24.48V (flooded) or 24.72V (AGM), and 48V systems show 48.96V (flooded) or 49.44V (AGM) at 50% state of charge.
What is the cut-off voltage for a 48V lead acid battery?
The cut-off voltage for a 48V lead acid battery system should be around 42.0-44.0V depending on the battery type and application. For flooded batteries, I recommend 42.0-43.0V, while AGM and gel batteries can safely go down to 44.0V. Going below these levels can cause permanent damage to the battery plates.
What is the maximum voltage of a 24V lead acid battery?
The maximum voltage for a 24V lead acid battery during charging should be around 28.8-29.6V depending on battery type. Flooded batteries can handle up to 29.6V during bulk charging, while AGM and gel batteries should be limited to 28.4-29.2V. Never exceed 30V as this can cause overheating and damage.
What is the maximum voltage for a 6V lead acid battery?
The maximum voltage for a 6V lead acid battery during charging should be around 7.4-7.5V for flooded batteries and 7.2-7.3V for sealed AGM and gel batteries. The maximum resting voltage should be approximately 6.37V (flooded), 6.43V (AGM), or 6.42V (gel) when fully charged.
Is 14.7 volts too high on a battery?
14.7V is acceptable for flooded lead acid batteries during bulk charging but slightly high for sealed AGM and gel batteries. For AGM and gel batteries, I recommend keeping charging voltage between 14.2-14.6V. Consistently charging above 14.8V can cause excess gassing and reduce battery life in all lead acid types.
What voltage should a lead acid battery be at?
A fully charged 12V lead acid battery should read approximately 12.73V (flooded), 12.86V (AGM), or 12.84V (gel) when resting. For optimal battery life, I recommend keeping lead acid batteries above 50% charge: above 12.24V (flooded) or 12.36V (AGM). Never let them drop below 11.58V (flooded) or 11.70V (AGM).
Is 12.2 volts a dead battery?
No, 12.2V is not a dead battery but it’s getting low. At 12.2V, a flooded lead acid battery is at approximately 45% charge and should be recharged soon. For AGM batteries, 12.2V represents about 35% charge. I recommend recharging before batteries drop below 12.24V (flooded) or 12.36V (AGM) to maximize lifespan.
Is 12.4 volts a fully charged battery?
No, 12.4V is not fully charged. At 12.4V, a flooded lead acid battery is approximately 60% charged, while an AGM battery is about 55% charged. A fully charged 12V battery should read 12.73V (flooded), 12.86V (AGM), or 12.84V (gel) when resting after charging.
Final Recommendations
After working with lead acid battery systems for over a decade, I’ve found that proper voltage monitoring is one of the most important factors in maximizing battery life. The charts in this guide provide the foundation for effective battery management, but consistent application is key.
For marine applications, proper battery monitoring is especially critical due to the harsh environment and limited charging opportunities. Understanding your marine battery systems can help prevent unexpected failures when you’re far from shore.
My top recommendation is to install a battery monitor that provides real-time voltage and state of charge information. These devices cost $100-300 but can extend battery life by 2-3 years and prevent expensive battery replacements.
Remember that voltage is just one indicator of battery health. Combine voltage monitoring with regular visual inspections, proper charging practices, and appropriate battery management for your specific application.
For portable power applications, understanding battery management for portable power systems can help you optimize your setup for extended runtime and reliability.
